5A50.30 • Electrostatic Machines: Van de Graaff Generator
Location: Cabinet 1
Demo Staff:
Instructions / Notes:
- Ideally the Van de Graaff is plugged into a demo table with a remote switch or power strip.
- With the variable control turned clockwise, turn the power on.
- Use the separate grounded discharge sphere to show a jumping spark across an air gap.
- To shut off the Van de Graaff without a shock, turn it off at the remote switch or the power strip.
- After turning off the remote switch and use the grounded discharge sphere to discharge the Van de Graaff.
Demo Staff:
- Van de Graaff generator is supplied with a grounded discharge sphere.
- Do NOT set up the new Van de Graaff generator. Please inform instructors that the only working Van de Graaf we have is extremely weak, but available for use.

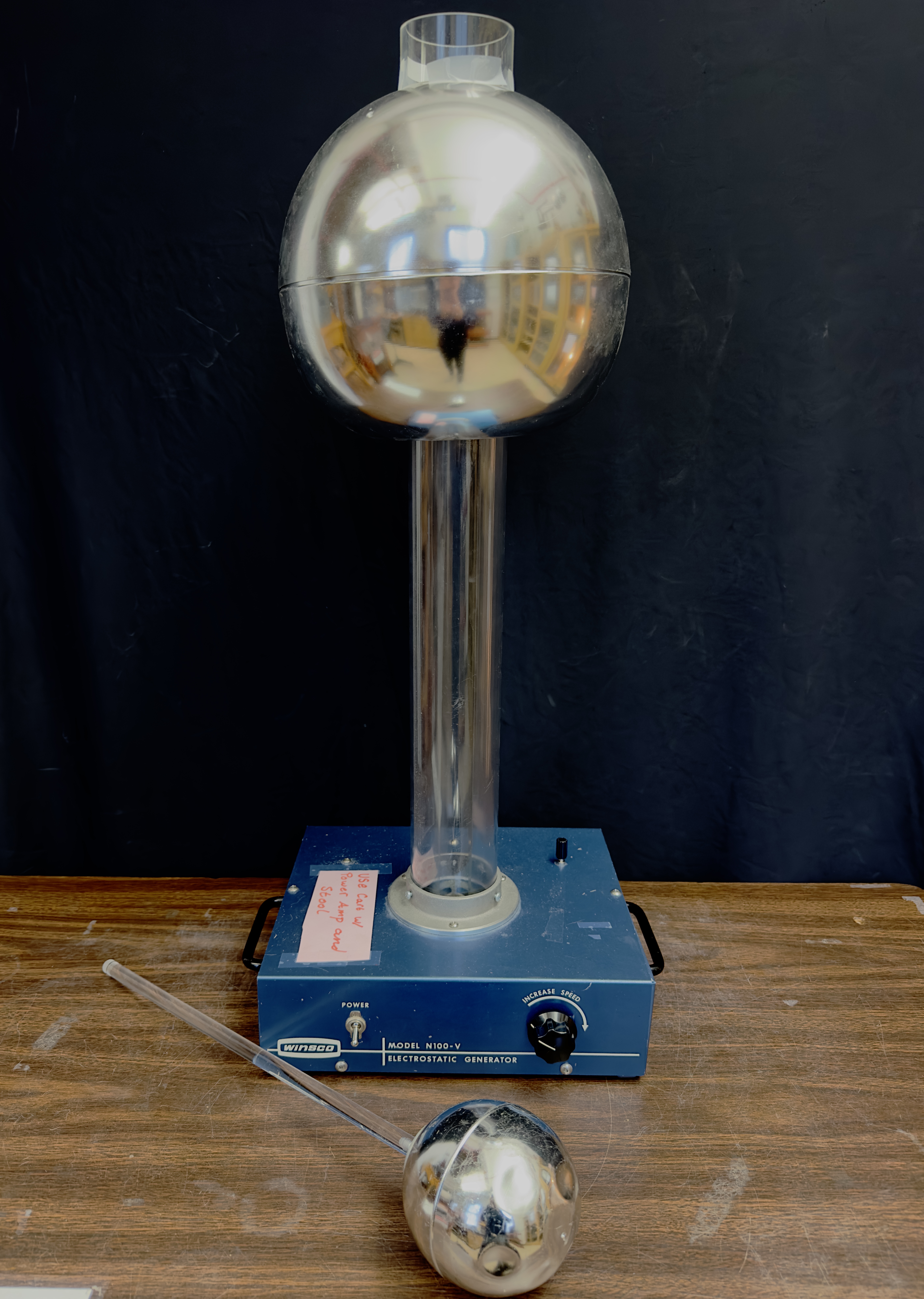

Photo Shows the Apparatus Used by the University of Texas at Austin.
