5D40.10 • Conduction in Gases: Jacob’s Ladder

Instructions / Notes:

• This is a step up transformer. CAUTION: LETHAL VOLTAGE.
• Note: This demo does not perform well in a humid environment.
• Note: The copper wires have already been sanded by demo staff.
• Turn on the power and the discharge will travel up the wires.
• The distance between the wires is the critical adjustment, so the wires should NOT be moving when the demo is turned on.
• For safety purposes, unplug the demo when it is not in use.

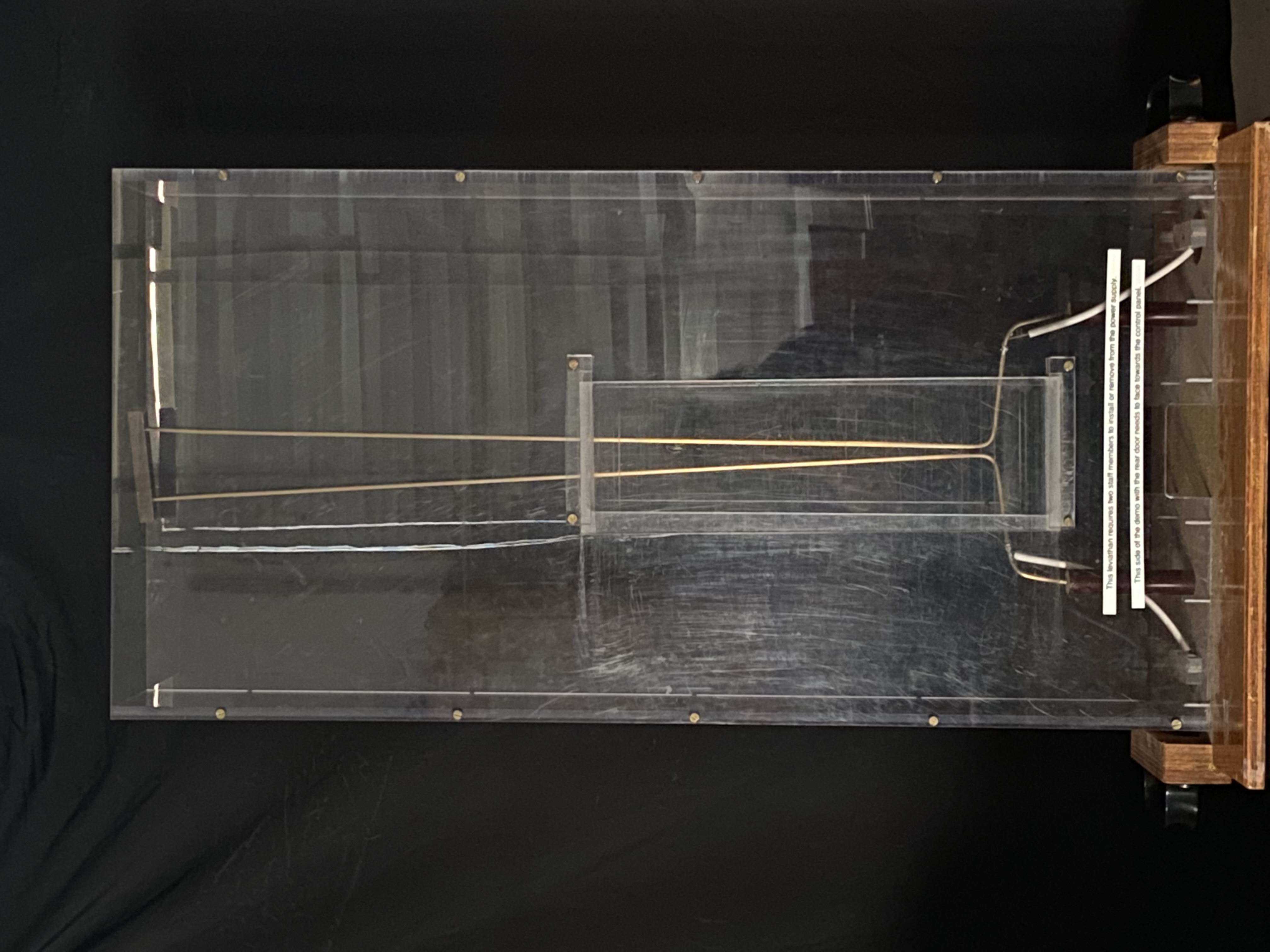

Photo Shows the Demonstration Apparatus Used by the University of Texas at Austin.
