6C20.30 • Diffraction Around Objects: Pin Hole Diffraction

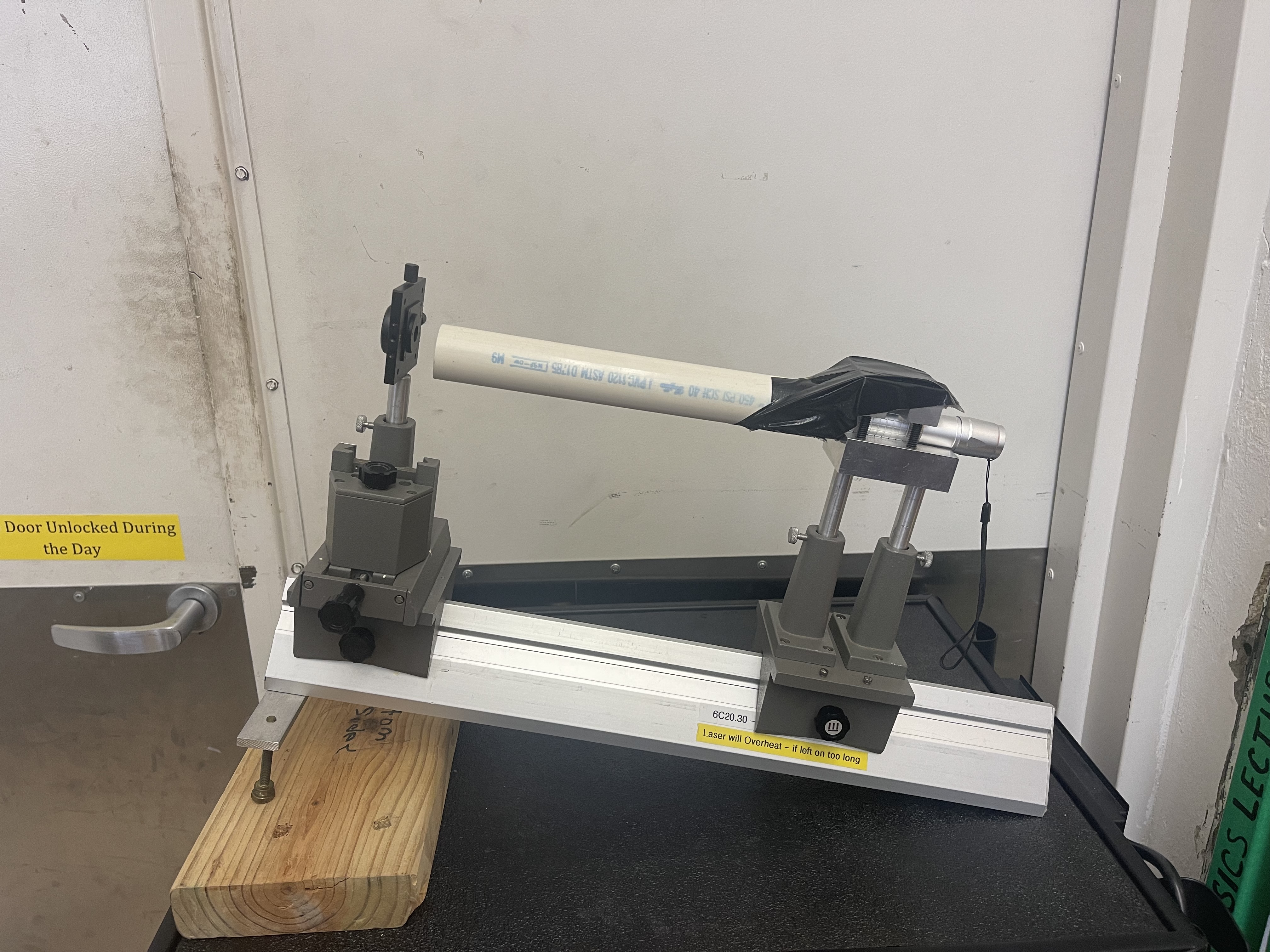

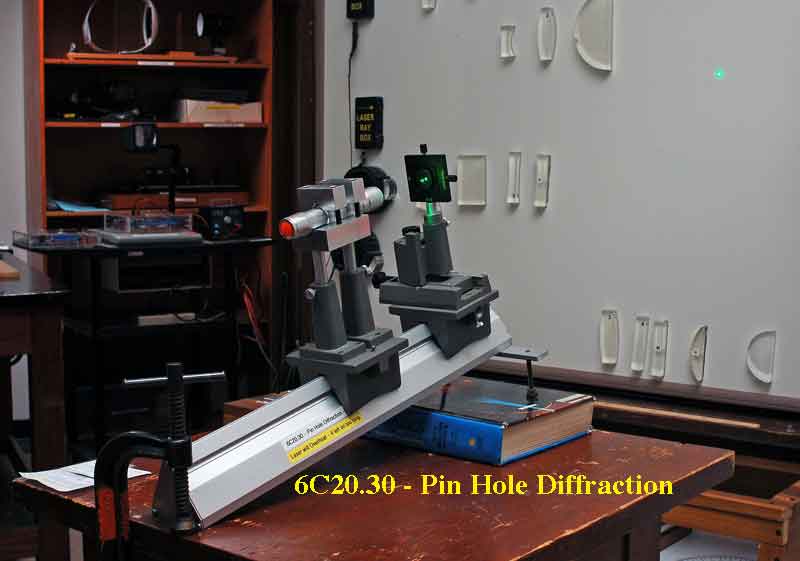

Photo Shows the Demonstration Apparatus Used by the University of Texas at Austin

Set Up Instructions / Notes:

• This demostration includes a geen laser, an optics rail and a slide wih a .2 mm circular pin hole aperture mounted to an X/Y stage.
• The pinhole may need to be horizontally and vertically adjusted using the knobs on the mount.
• If the image is spread out on the horizontal axis, use the knob that lays along the track.
• If the image is spread out on the vertical axis, use the knob that is set vertical next to the light.
• Continue this process until the rings appear clearly. It should not be necessary to adjust the distances of the aperture and the laser.
• Images included depict the laser being aligned only in the horizontal axis, only in the vertical axis, and fully aligned.
• Note:   The auditorium must be completely dark.
• Even the A/V projection system will need to be blanked by pressing the "mute icon" on the control panel.
• The Airy disk and rings can be best seen by aiming the laser cart towards the prep room doors.
• The rings will be easier to see the further it is projected.

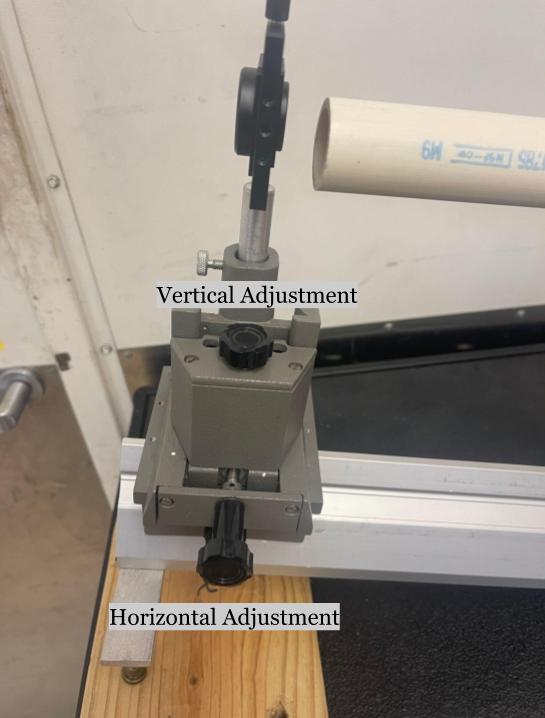

Photo shows the knobs used to adjustments.
