1M40.70 • Conservation of Energy: Chaotic Pendulum

Location: Cabinet 6

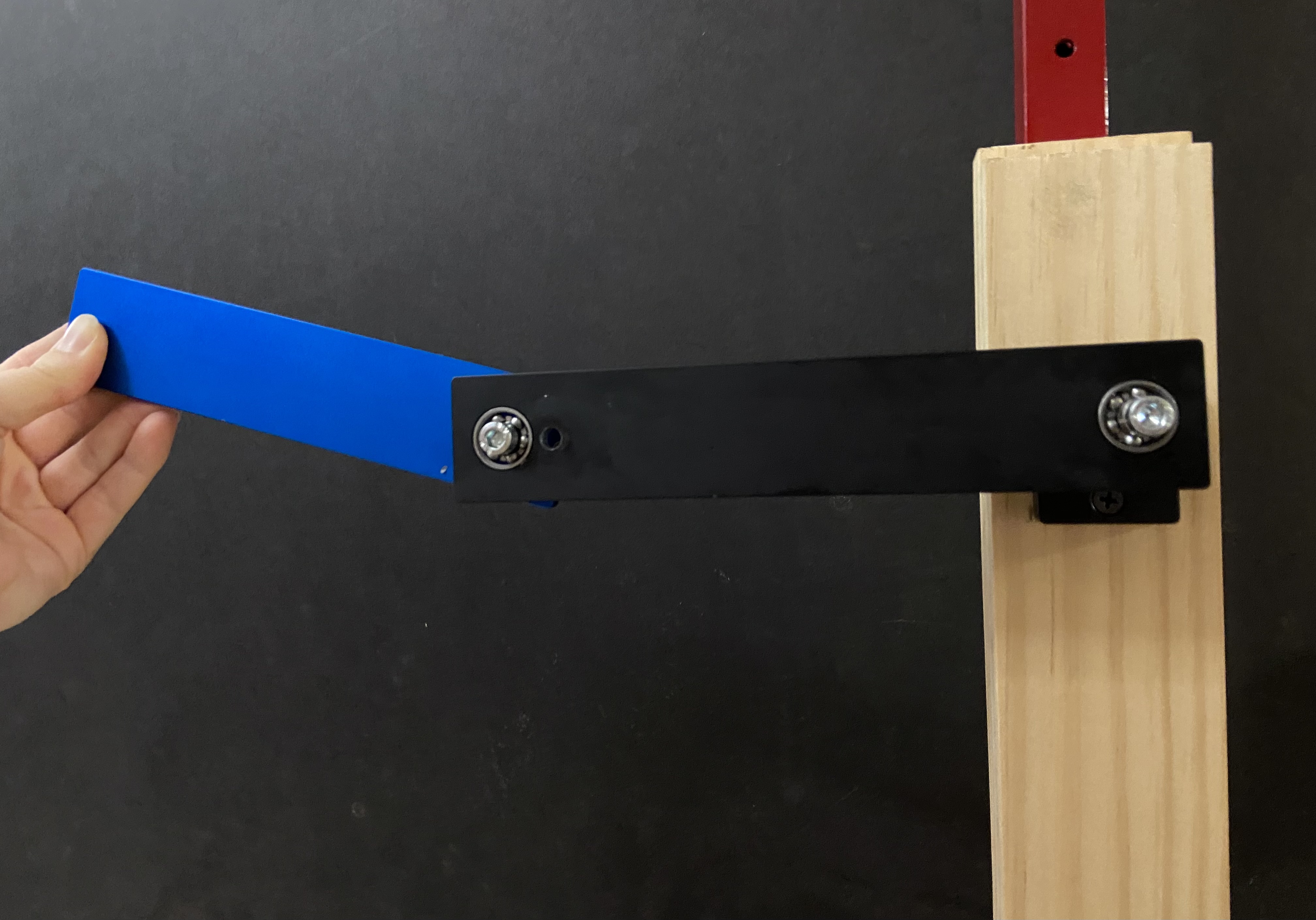

Photo shows the demonstration used at the University of Texas at Austin.

---

Concepts Conveyed:

• When the pendulums are stabilized with the screw, both pieces oscillate with the same phase.
• When the screw is removed, the pieces oscillate with different phases, causing energy to be transferred between the two pieces or lost due to friction.

---

Instructions / Notes:

• Simple pendulum: the pendulum will initially have a screw stabilizing both pendulums to move as one.
• Chaotic pendulum: with the provided Philips screw driver, unscrew the dark grey middle screw. Begin the system's motion by either starting the motion the same as a simple pendulum, or wrap the blue piece inside the black piece and release.

---

Demo Staff:

• Clamp the demo to the table.
• Include a Philips-head screw driver with demo.
